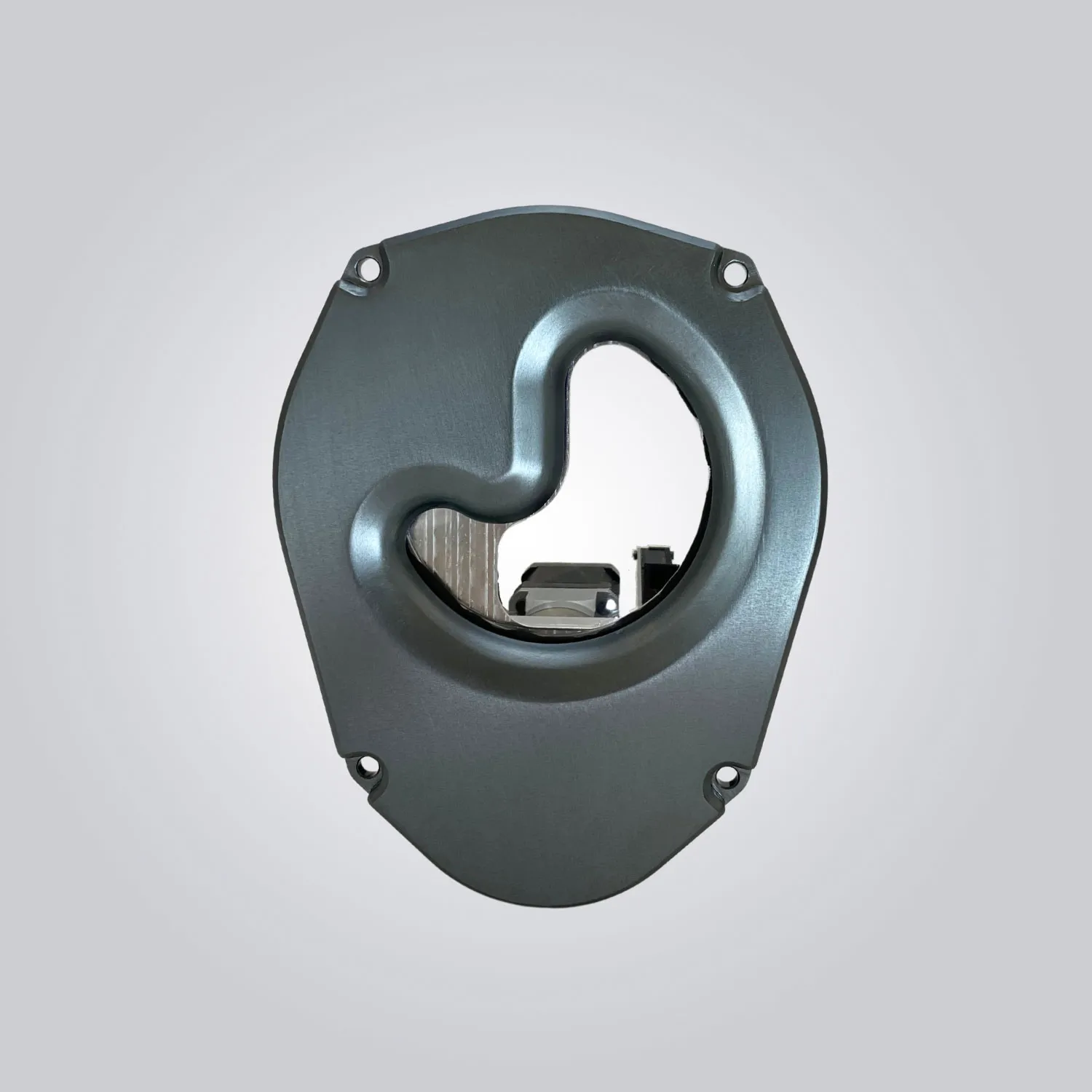

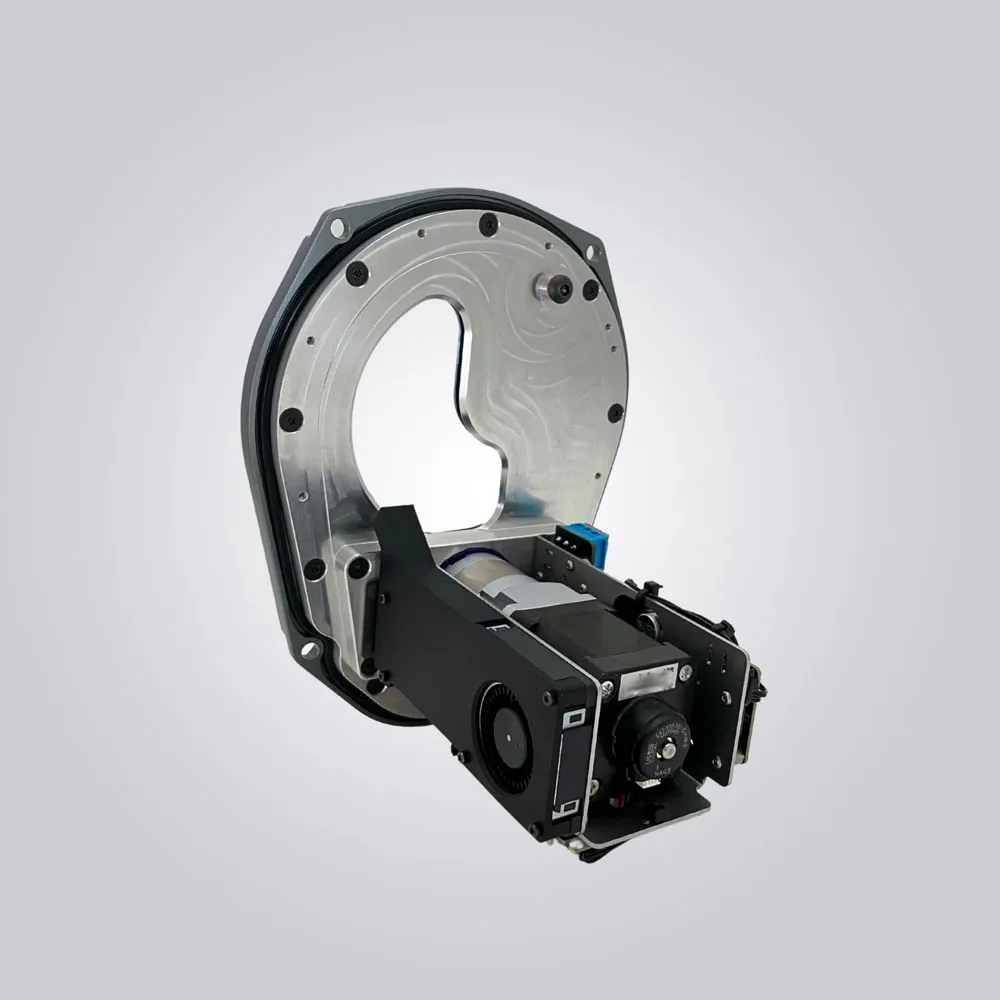

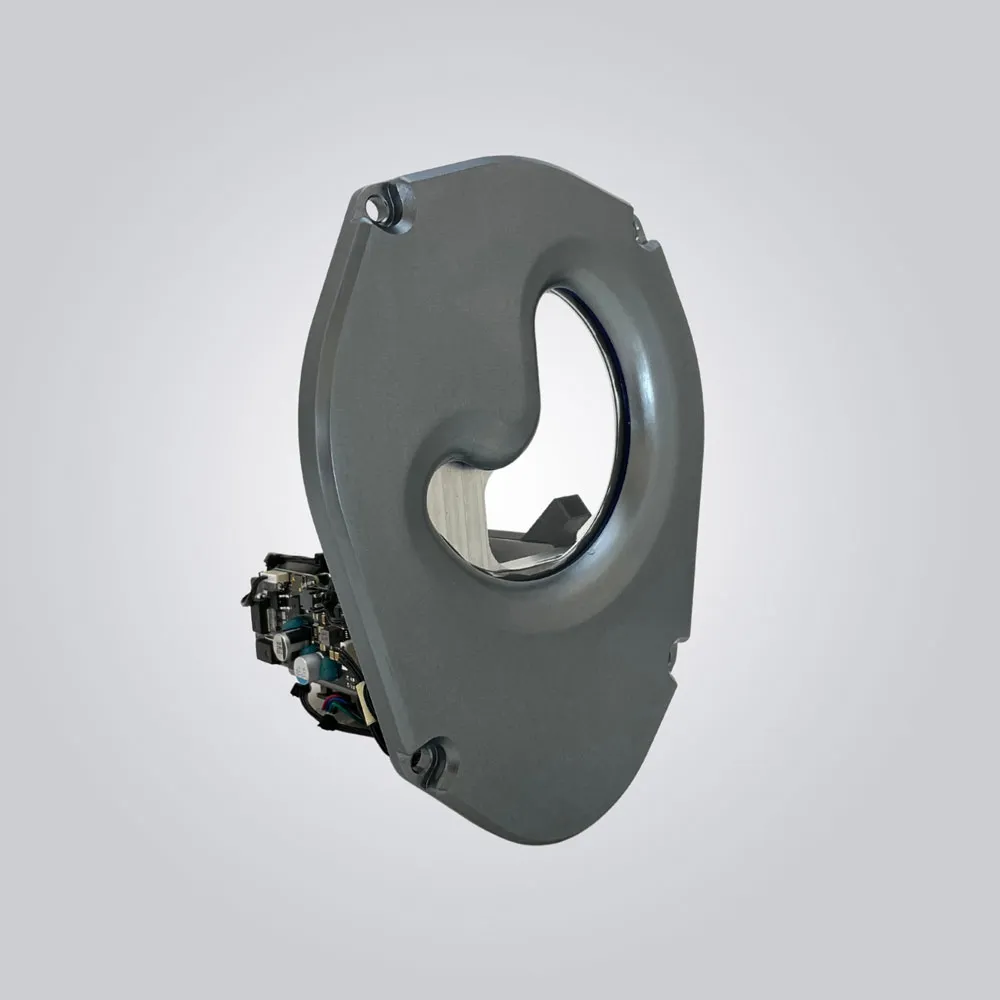

SENSORSHIELD-1600™ SELF-CLEANING WINDOW

Turn your existing optical sensor into a self-cleaning one. The SensorShield-1600™ is custom-designed to provide flexibility and convenience to system integrators and manufacturers, allowing you to quickly develop a wide range of rugged self-cleaning optical sensors like cameras and laser sensors.

Please request a quote for your price

Request a quote

CLEAR VISION WITH ZERO UPKEEP

Self-cleans using a patented process that actively rejects abrasive dust, bitumen, mud, oil, salt, potash and many other contaminants using a micro-renewable optical layer. Rated for 50,000 cleaning cycles.

NO VISUAL INTERRUPTIONS DURING SELF-CLEANING

The self-cleaning process does not visually interrupt the view; therefore the self-cleaning cycle will never interfere with the view of the sensor behind it or the person using the data.

RUGGED AND READY FOR ALL CONDITIONS

The SensorShield-1600™ contains an aerospace alloy construction for high-impact and harsh industrial environments including temperature ranges from -40°C (40°F) to 60°C (140°F) with solar loading. The single-piece design requires no vulnerable external hardware such as nozzles, hoses, compressors, or wipers which are prone to clogging and damage.

SIMPLE TO MECHANICALLY INTEGRATE

Easily integrate into any enclosure by replicating the recommended panel cut out; the unit even comes with its own integrated seal. You can design your own enclosure or work with our team to customize your ideal system.

SIMPLE TO ELECTRICALLY INTEGRATE

The electrical integration is flexible and simple. The integration can be as simple as powering the unit with a memorized cleaning frequency, or it can be as flexible as taking complete control of the self-cleaning cycle complemented with status and diagnostic feedback through RS232 serial communication.

COMPACT & FLEXIBLE SIZE FOR A WIDE RANGE OF SENSORS

Offering 3405 mm² (5.3 in²) of usable optical surface, while maintaining a compact 162mm x 162mm external size to accommodate a wide range of cameras, lenses and sensors, while minimizing space requirements.

Click here to see Spec Sheet

Click here to see User Manual

FCC Certified

Fast Shipping Available

Patented Technology from Canada

2 Year or Cycle Rating Warranty

What our customers are saying

"The ToughEye™ fills an important need for our mining clients who require maintenance-free optical sensors for very harsh environments, especially in Australia where temperatures can easily reach 55+ Degrees C. In this respect the ToughEye™ has been a great addition to the RCT family of products and the ExcelSense team has been great to work with for both product and sales support"

Brendon Cullen

Product Manager Automation & Control, RCT

"The ToughEye™ has been instrumental in providing an always clear view when operating our shiploaders handling steelmaking coal and potash. These allow us the ability to reduce the potential of asset damage, both on the our assets and the ship itself. We are looking forward to adding more ToughEye™ at our terminal, enabling us optimize our material handling processes."

Clinton Shaw

Assistant Maintenance Manager, neptune terminals

"With the push towards industrial automation, we see an increasing need for remote cameras and sensors in rugged industrial environments. The challenge has always been that sensors deployed in dirty environments required frequent human intervention, limiting their usability. We view the ToughEye™ as truly the first of its kind technology that is designed specifically to address this issue which will immediately create value for our customers across several mining applications"
